Recovering and Casting Indium

From TheBeard Science Project Wiki
Jump to: navigation, search

Problem


I posed this question on StackExchange on February 3, 2016:

I bought some scrap indium online, and I melted it down into an ingot on my kitchen stove, but my losses were very high as molten indium has a surprising ability to stick to things.

I have a lot of indium stuck to a stainless steel pot, and, unfortunately, I dropped a glass dish that had indium in it into the steel pot and it broke. So now I have broken glass that is covered in indium, and it really likes to stick to glass as well.

Is there a good way to recover the indium? Perhaps increase its surface tension so that it beads up and coalesces? I've seen something similar with sodium metal in hot oil; adding a few drops of isopropanol makes it coalesce. Is there a similar method for indium?

Also, is there a good material to cast indium in? I see that teflon melts at a higher temperature than indium, so maybe a teflon coated muffin tray? Any thoughts on that? Recommendations?


I then commented on February 4, 2016:

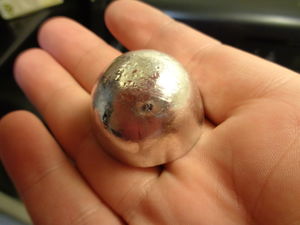

So I had time last night to try out a better way to cast indium. I thought about it and decided a teflon coated tray was a bad idea because you still might have to use a tool to pry the ingot from the mold, and over time you would scratch the teflon and create a more adhesive surface. I decided to try one of those silicone rubber molds used for baking. I found two of them at a thrift store for 4 or 5 dollars each, and they worked perfectly! So that's one question down, but the question of how to recover indium from surfaces that it is well adhered to remains unanswered at this time.

Solution


I answered my own question on March 21, 2016:

Through experimentation, I've come up with satisfactory answers to my problems.

1) What is the best material to cast indium in? Silicone rubber (the kind used for cookware).

2) How can I recovery indium that has "wetted" a stainless steel pot? Put the pot on the stove and heat until the indium is molten. Use a silicone rubber spatula to scrape the indium off, let it harden on the spatula, then pick it off. You can also use a wet sponge as long as it's the kind used for cleaning solder irons (make sure it's a new clean sponge!). I folded it in half and held it with a large clamp. That gave me something to hold onto.

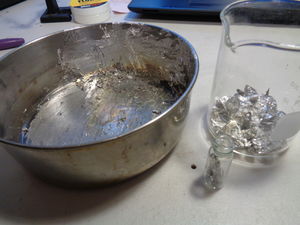

3) How can I recover indium that has "wetted" glass, broken glass, or is contaminated with other odd bits of material?

Number 3 is more involved, and I will break it down into steps:

1) Go through the material with a pair of forceps and discard any bits of glass that have no indium on them.

2) Place the material in Pyrex beaker.

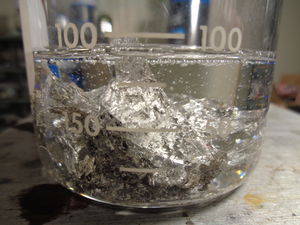

3) Fill the beaker with mineral oil until the material is fully submerged (water may also work, but the oil will probably help keep the indium from re-wetting the glass bits).

4) Place the beaker on a hot plate and slowly heat up to about 160 degrees C (320 F). Periodically stir while heating (a screwdriver worked fine for me; I didn't use a magnetic stir rod because the broken glass might chew it up). Also, make sure your area is well ventilated; the oil will produce vapor.

5) Once you have reached 160 C, poke the indium and make sure it is molten. Increase temperature if it is not molten. Stir for about 30 seconds to break up the indium. Keep on heat; try to maintain ideal temperature.

6) Use a glass dropper to drop in 31.45% Hydrochloric acid (I used 4 drops total when the oil and material together was about 100mL). Add one drop at a time, and let the drops run down the inside of the beaker into the oil. (WARNING: This can result in splashing! Don't over heat the oil, add the acid drop-wise, and use proper safety gear: gloves, long sleeves/pants, face shield, and respirator with acid vapor cartridges). Adding the acid will react with the indium oxide layers and help break the indium free from other materials.

7) Stir vigorously with your implement of choice. The oil will become a nearly opaque brown with all the oxides. The stirring should also free up most of the indium from the glass bits.

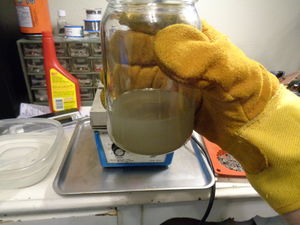

8) When the oil seems saturated, thoroughly decant the oil into a waste receptacle (I used a mason jar). Save as much solid material as you can.

9) Fill the beaker with clean oil; do NOT begin stirring yet. Keep on heat.

10) Use your forceps to pick out the larger pieces of glass that seem mostly clean. Use another implement to scrape off little bits of indium from the glass bits as you are pulling them out of the oil.

11) Once most of the glass is removed, use strong stirring once again until the oil is mostly brown.

12) Using your stirring implement, try to push a good amount of the molten indium together into one blob on one side of the beaker. Now decant the oil into a waste receptacle.

13) Place beaker back on heat for a short time just to ensure the indium is molten. Make sure most of the material is in one corner of the beaker.

14) Use a broad-shaped implement (I used the flat head of a long "elevator bolt") to hold back most of the scrap material and pour off the indium from the beaker into a silicone rubber mold. The poured off indium should be MOSTLY clean. Repeat this step until you feel you cannot get anymore. Put the scrap material off to the side.

15) Once the clean blobs have hardened, dab them with a paper towel and cut them into tiny chunks with a pair of wire snips.

16) Take each individual chunk and crush it paper-thin using a flat metal implement and a flat metal surface (I used an elevator bolt and a piece of sheet metal). This step is to find any tiny bits of glass. Glass has quite a different "crunch" than the typical "crackling" of the indium's crystal structure. You will know when you find one. Fine tweezers and some sort of magnifying glass helps.

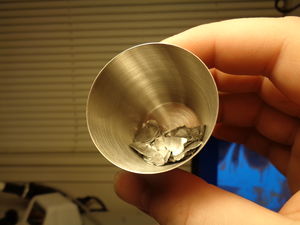

17) You can now re-melt the clean indium into one chunk. I use a stainless steel shot glass and pour it off into a silicone rubber mold. If it's still oily, wash it with Ronsonol/Zippo lighter fluid, then rinse it with water. I actually chose to keep this piece of indium separate from my other indium pieces that I KNOW are clean. You never know, there might be one last sand-grain sized piece of glass in there.

18) As for the scrap material, there's still a bit of dirty indium in it. You can decide how hard you want to work and continue salvaging it. Use tweezers to pick out as much "clean" glass as possible. Wash it with lighter fluid and rinse it with water. Perhaps re-melt it in a steel shot glass and try to pour a little bit more out of it. Try putting a blob of solder flux in with the molten material and get it to stick to a copper wire. It's all going to be loss anyway, so you may as well try different things.

DISCLAIMER: I am not a professional! This procedure is not advisory. It is an account of my experiment and what worked for me.

If anyone has suggestions or constructive criticism, please feel free to comment. I know there are probably better ways to do this.

Photos


DSC00505.JPG DSC00516.JPG DSC00518.JPG DSC00608.JPG DSC00610.JPG DSC00612.JPG DSC00613.JPG DSC00614.JPG DSC00615.JPG DSC00616.JPG DSC00617.JPG DSC00618.JPG DSC00619.JPG DSC00633.JPG

Update 4/14/2016

I decided to try to clean the indium a bit further using another technique. I found that indium kind of doesn't stick very well to zinc-plated steel (hot-dip galvanized mild steel).

The process:

  1. Melt the indium on the metal plate using a heat gun.
  2. Agitate it with a screw driver to make all the impurities come to the surface. Some will float to the top and others will drop the the bottom.
  3. Make sure it melts into a puddle thin enough that you can bend it once it hardens.
  4. Let it harden and remove it from the metal plate.
  5. Use an Ex-Acto knife with a "fine point" tip to gouge out the little specks of impurity from the surface.

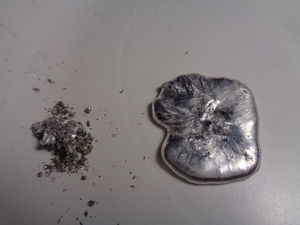

  6. Now bend the indium like a piece of taffy. Wherever there are impurities you will see it kind of split apart like a fresh baked cookie. Absolutely pure indium will not do this quite so easily.
  7. Use the Ex-Acto to gouge out material from the cracks. Continue bending and gouging until it seems you've reached the point of diminishing returns.
  8. Re-melt the indium and repeat the process until you are satisfied with the results. I did this about 10 times. You will notice fewer and fewer splits during bending as you repeat the steps because the indium becomes more elastic. There will be some loss of good indium.
